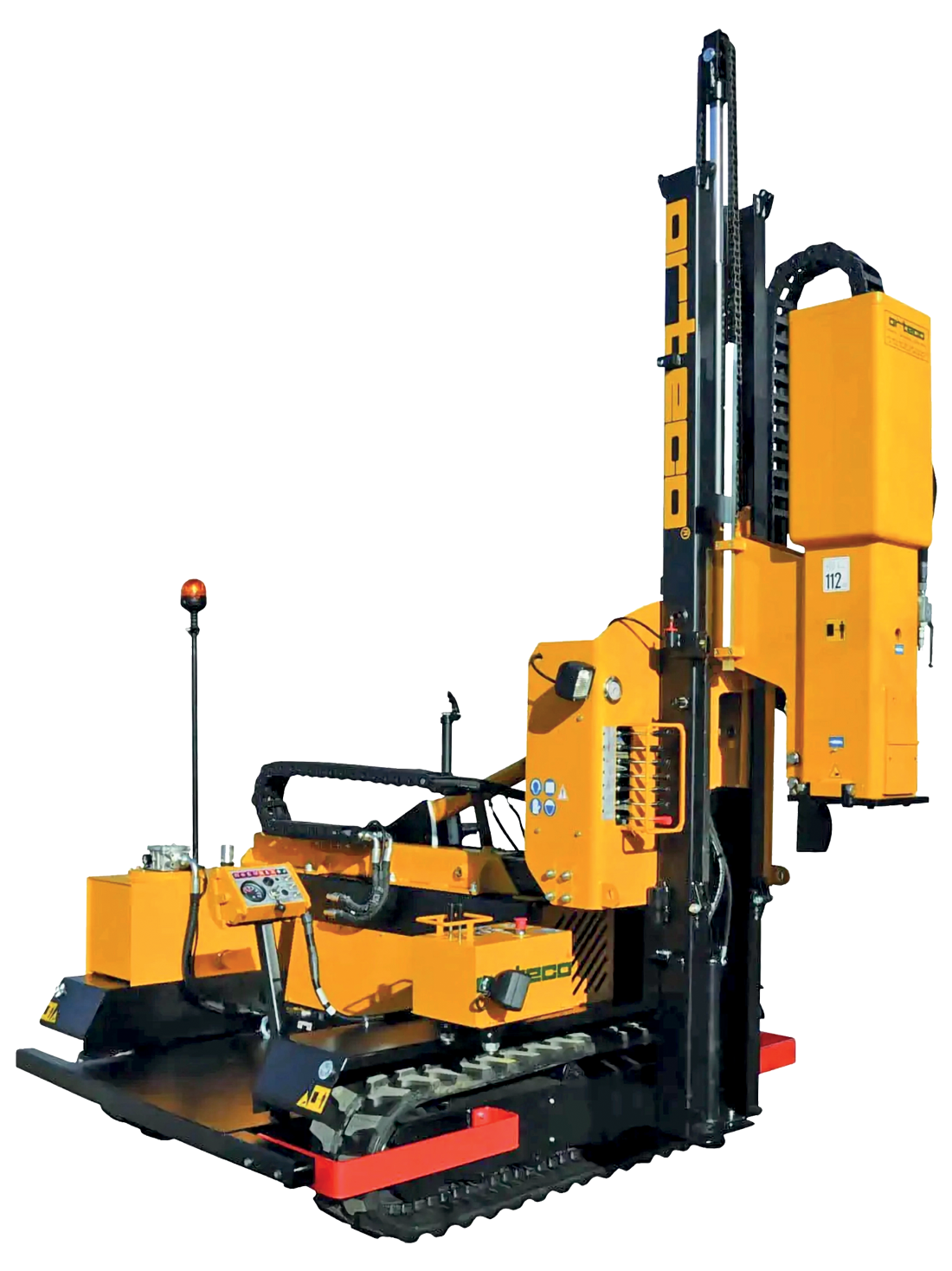

The Havy Duty 1000 pile driver is the ideal tool for installing steel posts for various types of use: photovoltaic panels, land and vineyard fencing and much more. The real revolution of this machine is the possibility of carrying out the driving without the need for foundations, which means faster and more economical work.
Soundproofed engine pile driving machines are equipped with high-quality soundproofed engines that comply with the strictest European pollution regulations (upon request, we can install particulate filter mufflers).
The tracked pile driver has been designed with particular attention tooperator safety and ergonomics; for this reason, the travel controls are separated from the pile driver controls
The arrangement of the hydraulic pipes behind the mainframe is a safety feature for the operator in case of pressurized hydraulic oil leakage.
It is large enough to be loaded onto the body of a truck. The vertical column can be hydraulically positioned to achieve vertical pile driving even uphill or downhill.
| Hammer power | 1060 |
|---|---|
| Blows per minute | 680/720 |
| Inclination kit | standard |
| Extractor setup | standard |
| Auxiliary system for accessories | standard |
| Hatz diesel engine | 3L41C |
| Electric start | 12 |
| Hammer noise level | 112 |
| Power (at 2600 rpm) | 32,5 (44,2) |
| Max operating pressure | 18 |
| Oil flow rate | 110 |
| Hydraulic oil tank capacity | 160 |
| Diesel fuel tank capacity | 60 |
| Total weight | 3950 |
